Check Valves

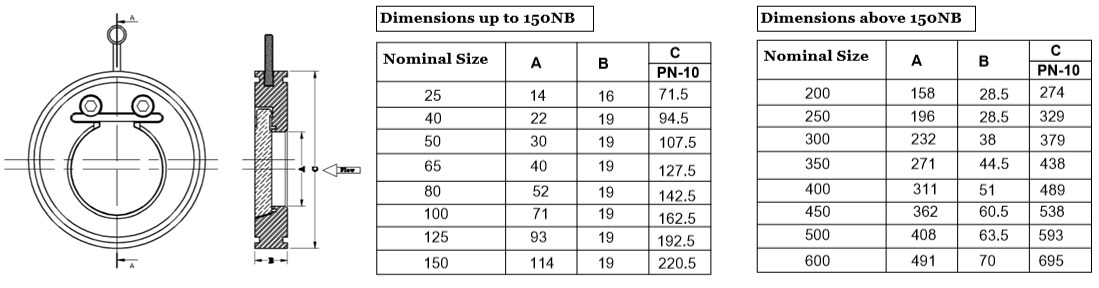

Check valves model EWTPS-001 is primarily single plate swing check valve with short pattern wafer body. The MS body is robust construction with good performance. The low inertia Disc Plate design enable the valve to open or close with a very low diffencial pressure. The eccentric disc shaft in combination with Disc seat guarantee appositive shut off the material liquid.

The vales are suitable for mounting between mating flanges those are welded with pipeline. No Gasket is needed in between mating flanges. O Ring is provided on both sides of check valve to eliminate the leakage. A handle is also provided on the top for easy installation. Valve is self an acting & non returning media.

Construction:

1.      Valve body                       Mild Steel IS-2062

2.     Wafer plate                      Mild Steel IS-2062

3.     Hinge rod                        Stainless Steel SS-304

4.     Allen Screw                     High Tensile Material

5.     Ring O                            Neoprene/Synthetic

6.     Flat Ring                         Neoprene / Synthetic

7.     Handle                            Mild Steel IS-2062

8.     Painting                          Epoxy Paint-Black Color

9.     Connection                     25 NB to 300 NB

10.   Dimension                      As Per Table

11.   Rating                            PN-10 to PN-21

12.   Operating Temp:             300C to 1300C

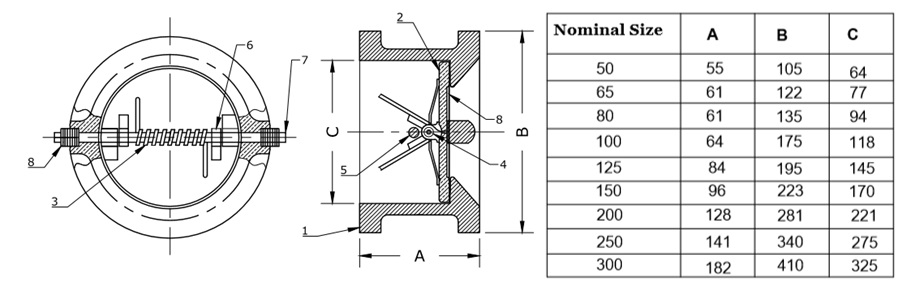

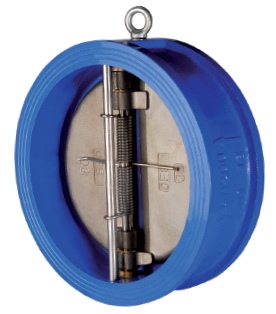

Dual Plate Swing Check Valve Series DPSCV-002

The dual plate check valve is a swing valve uniquely designed for all purpose no-return valve(NVR) applications.

The constructional feature make the valve much smaller in size, lighter in weight & makes it much feasible in operation as compared to conventional swing check valve.

The dual plate swing swing check valve employs dual spring loaded plates/disc hinged on a central hinge pin. It operates on the differential pressure between fluid flow pressure & spring torsion pressure. As the flow pressure reduces, the plates tend to close with a cushion effect by spring torsin force thereby restricting the reversal of fluid flow.

Construction:

1.      Body                                      Cast Iron, Cast Carbon Steel

2.      Disc                                       Ductile Iron/ Cast Iron/ Stainless Steel

3.      Spring                                   Stainless Steel SS-316

4.      Hinge Pin                               Stainless Steel SS-316

5.      Stop Pin                                 Stainless Steel SS-316

6.      Hinge Pin Strainer                   Carbon Steel

7.      Stop Pin Retainer                    Carbon Steel

8.      Rubber Seating                       Synthetic/Neoprene/Silicon





Sludge Seprator (Dirt Seprator)

Construction:

1. Mild Steel IS-2062

2. Stainless Steel SS-316

3. Brass Make Emerald

4. 10 to 21 Bar

5. Paint Inner and outer surface provided with two coats of epoxy after cleaning properly.

Dimensions

Model Size A B C
ESS-1 50/65 350 200 100
ESS-2 80 380 230 210
ESS-3 100 400 250 210
ESS-4 125 450 260 270
ESS-5 150 475 280 320
ESS-6 200 580 300 370
ESS-7 250 650 330 430
ESS-8 300 750 370 480
ESS-9 350 800 400 625
ESS-10 400 850 450 700

Benefits:

1.       Uses of coalescence media instead of stainless steel filter / bucket.

2.       Remove solid particles that need to be flushed out before they can cause damage to pumps

3.       Maintenance free.

4.       No replacement/cleaning of filters to get clogged.

5.       Increase life of pumps and other components too.

6.       Quite operation.

7.       Also saves major problems such as pump failure, corrosion and energy loss.

8.       Flow remains constant without any high pressure drop.

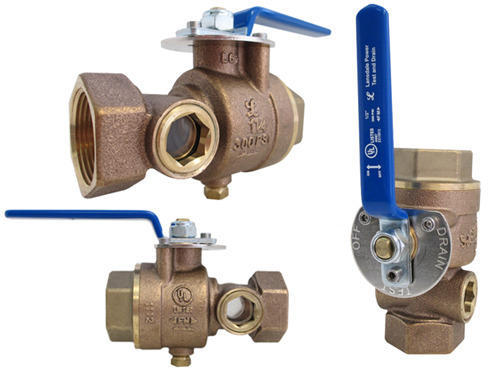

Test & Drain Valve (For Fire, Fighting & HVAC Industries)

Connection- Female x Female or Solder Connection

It combines the function of testing and draining the system.

Rated Pressure: 100 to 300 PSI

Connection Available:

1 FPT (BSP) X 1 FPT (BSP)

Construction:

1.       Body                              Brass(Forged)

2.       Glass                             Toughened (Tempered)

3.       Handle                           Stainless Steel SS:304

4.       Hardware                       Brass

5.       Ball Valve                       Brass duly Chrome Plated

6.       Seating                           Teflon

Specification | Design May be change without any prior Intimationne change without any prior Intimationn
