BOX TYPE STRAINER


BOX TYPE STRAINER TRUNCATED CONICAL STRAINER

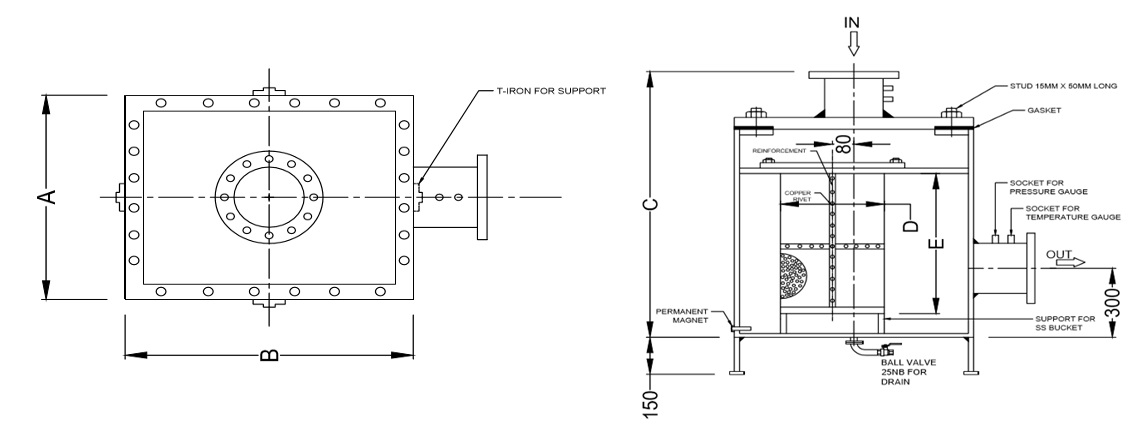

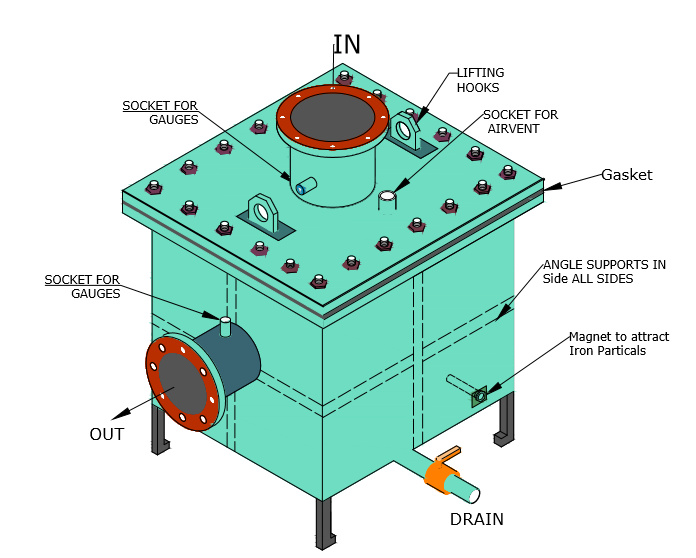

BOX TYPE STRAINER

1. Body- 8MM Thick MS IS-2062 Duly Epoxy Painted
2. TOP FLANGES- Made Out of MS IS-2062, 18MM Thick.
3. SUPPORT- M.S T-IRON 50x50x50 Support All Five Sides of Box
4. STUDS-15MM Dia x 50MM Long Studs & Nuts High Tensile Material
5. BUCKET- Made Out of Stainless Steel Gr. SS-304, Thick 0.5MM Having 2MM Perforation With 40 Mesh, Duly All sides Fixed With Necessary Supports.
6. DRAIN- A Brass Ball Valve 25MM Is Provided At Drain To Drain Out Water.
7. MAGNET- 150MM Long Magnet Provided To Attract IRON Fills

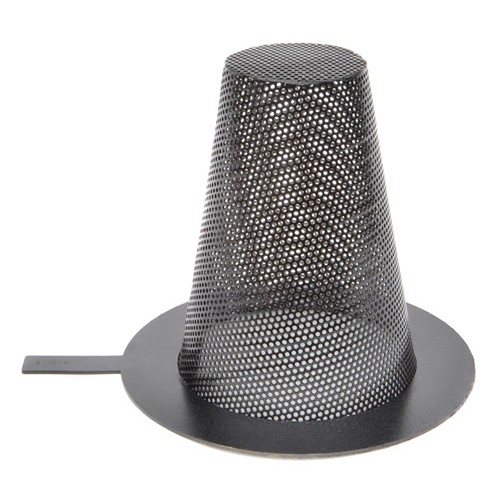

TRUNCATED CONICAL STRAINER

Size A B C D
40 87 35 15 52
50 100 45 20 70
65 121 61 32 90
80 140 75 35 105
100 171 95 40 140
125 210 125 50 175
150 240 140 70 210
200 296 196 100 282
250 350 240 110 355
300 400 295 120 427
350 470 330 150 477



Specification | Design May be change without any prior Intimationne change without any prior Intimationn
