MICROBUBBLE DIRT SEPERATOR

MICROBUBBLE DIRT SEPERATOR

MICROBUBBLE Air/Dirt Separator: The Shell Shall be constructed of mild steel with coalescence.

It shall work on the principle of coalescence. The water velocity the shell not exceed 1.5m/sec. The M.S Shell to be fabricated or other similar standard. The inlet and outlet connections shall be flanged. It shall be provided with a high capacity auto air vent at the two and a drain valve at the bottom.

Matching Flanges, high tensile bolts & nuts and gasket shall be also provided By the manufacturer.

1. Working Principle: When water comes in contact with coalescence media the straight flow of water is deflected in many directions. Micro Bubble in the water attach to the coalescence media growing large enough to get separated.

2. Advantages:-
a. Removes Micro bubble as smaller(18 micros)
b. Removes Dissolved Air.
c. Removes Air From place where an air vent cannot be installed.
d. Only 2 psi pressure drop at optimal flow rate

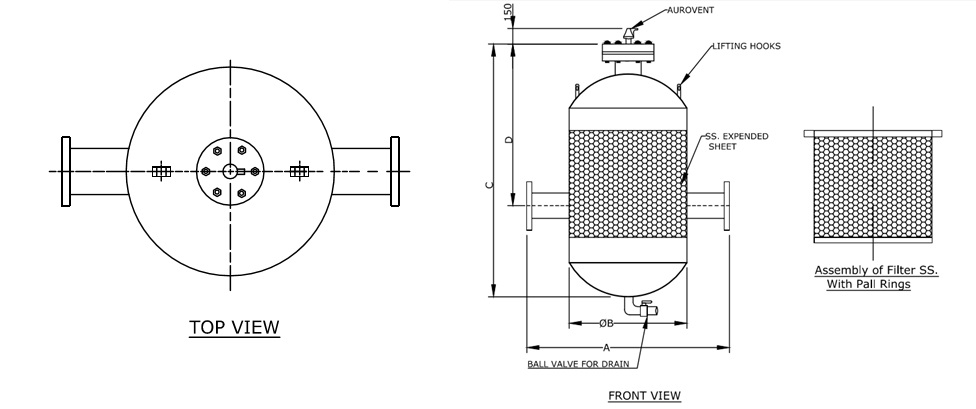

Model Connection Size A B C D WEIGHT(KGS.)
EMBADS-100 100 465 225 690 465 40
EMBADS-125 125 525 280 805 520 60
EMBADS-150 150 570 325 915 580 72
EMBADS-200 200 655 410 1140 690 105
EMBADS-250 250 805 505 1365 800 170
EMBADS-300 300 965 605 1590 905 250
EMBADS-350 350 1110 700 1815 1030 390
EMBADS-400 400 1275 805 2040 1140 490
EMBADS-450 450 1435 900 2265 1250 615
EMBADS-500 500 1595 1000 2490 1365 390
EMBADS-600 600 1900 1205 2940 1590 1560


Specification | Design May be change without any prior Intimationne change without any prior Intimationn
