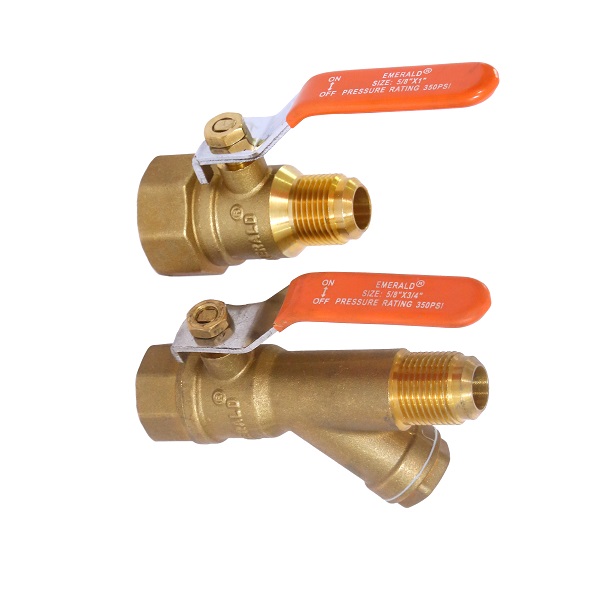

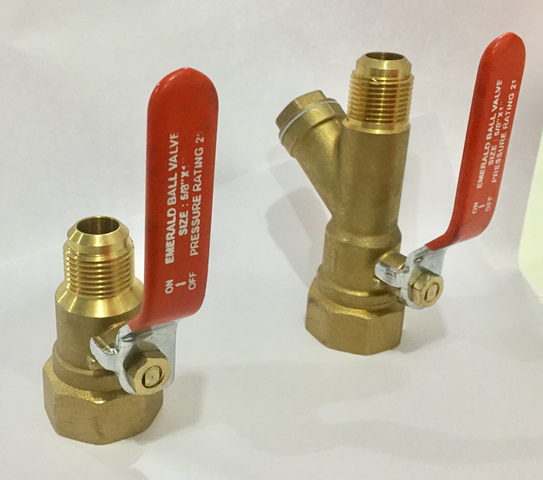

Ball Valves (For Fan Coil Units)
Construction: Bronze forged body with chrome plated brass ball, BRASS STEM duly chrome plated, Teflon seals and Gaskets, Teflon seals cap Gasket retained in Body groove to prevent accidental loss synthetic Rubber O Ring stem seal.
Quick Flow Operation: Valves fully operated or closed with Quarter Turn of Valve stem.
Valve position indication: Arrow on the Body Shows flow direction.
Valve Chamber: Vented to inlet port which valve is closed.
Size available:
5/8 Flare x 1/2 BSP
5/8 Flare x 3/4 BSP
5/8 Flare x 1 BSP
Body: Brass Forged Body
Sealing: Teflon
Handle: Stainless Steel SS-304 (2 mm THK) Test
Test Pressure: 21 Kg/cm2
Pressure: 21 kgcm2
Ball: Brass duly chrome plated

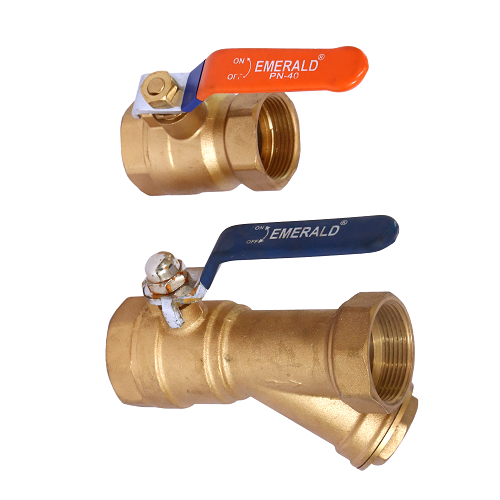

Full Way Ball Valve (Series-EFWVV-102)) Specification: Material : Brass / Bronze Size: Available 12NB to 50 NB Sealing: Teflon Handle: M.S. Chrome Plated Test Pressure: 21 Kg/cm2 Ball: Brass Duly Chrome Plated Maximum working pressure: 500 PSIG (35 Kg/cm2) Operating Temperature Range: -40oF to 300oF
Specification:
Material : Brass / Bronze
Size: Available 12NB to 50 NB
Handle: M.S. Chrome Plated
Ball: Brass Duly Chrome Plated
Maximum working pressure: 500 PSIG (35 Kg/cm2)
Operating Temperature Range: -40oF to 300oF
Specification | Design May be change without any prior Intimation
