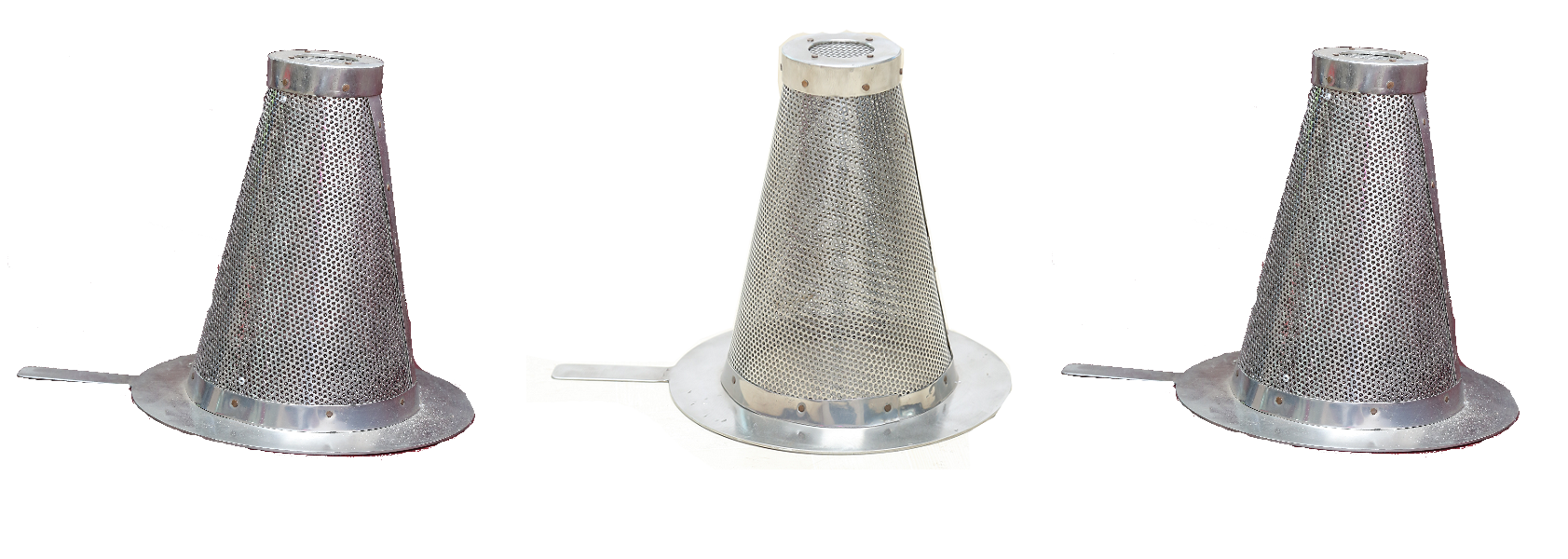

CONICAL STRAINER
Emerald is also in to the manufacturing of conical strainers. Conical strainers are also called temporary strainers. There are Benefits of conical strainers which are mentioned below:
Conical / Temporary Strainers
+ More cost effective, Conical Strainers strainer are temporary Strainers used mostly before start up of a Plant use perforated or wedge wire filter element to trap suspended solids from a pipeline.
+ Conical strainers are usually installed horizontally in a piping system.
+ Conical strainer are commonly used in pipelines to prevent damage of Gauges, pumps, control valves, Flow meters and other process equipment.
+ Fabricated Conical strainers from 2” to 24” (larger sizes are available)
+ Designed in accordance with ASME Section VIII Div. 1.
+ Standard design pressures include 150#.
+ Conical strainer available in CS,SS304,SS316, Duplex,Super Duplex.
+ Conical strainer are available in both Basket type and Cone Type Temporary Strainers.
FEATURES
+ ANSI Classes 150, 300, and 600
+ Perforations from 1/32′ to 1/2′ diameter
+ Mesh Liners of 20, 40, 60, SO, and 100
(best with basket type strainers)
+ Stainless steel or Monet construction
OPTIONS
+ Alloy construction, RTJ-style connections
DESIGNED FOR USE IN
+ New pipeline start-up service
+ Line flushing after any modification work
|
