Application:
Flow control used in Liquid Flow.
For lines carrying water or any fluid.
Not harmful to brass or phosphor.
Bronze is not classified as a hazardous fluid.
Specification:
Control Type: Paddle.
Max Static Pressure: 10 kg/cm² to 16 kg/cm².
Ambient Temperature Limits: 0°C to 60°C.
Max Liquid Temperature: 100°C.
Electrical Switch (Spot Rating): 220 VAC, 15A.
Connection: Screw terminals.
Case: Plastic cover with 1/2 conduit opening.
Construction:
Body: Brass Forged.
Connection: 1" BSP (Male Thread).
Base Plate: Stainless Steel SS-304.
Paddle: Stainless Steel SS-304.
Supply Rating: 220V, 15A.
Pressure: PN-10/PN16.
Indication: Indicates the flow of water in the pipeline.
Non-Corrosive: All parts are made of Brass or Stainless Steel, which are
non-corrosive metals.
Mounting:
May be mounted on horizontal or vertical pipe lines.
Mount in a section of pipe with at least 5 pipe diameter straight run on
each side of the switch.
Adjustment:
Note: Sealed adjustments are not field adjustable.
To Adjust Setting:
Remove switch cover.
For higher flow rate, turn range adjusting screw clockwise.
For lower flow rate, turn range adjusting screw counter-clockwise.
Ensure the flow switch cover is properly replaced before leaving the job.

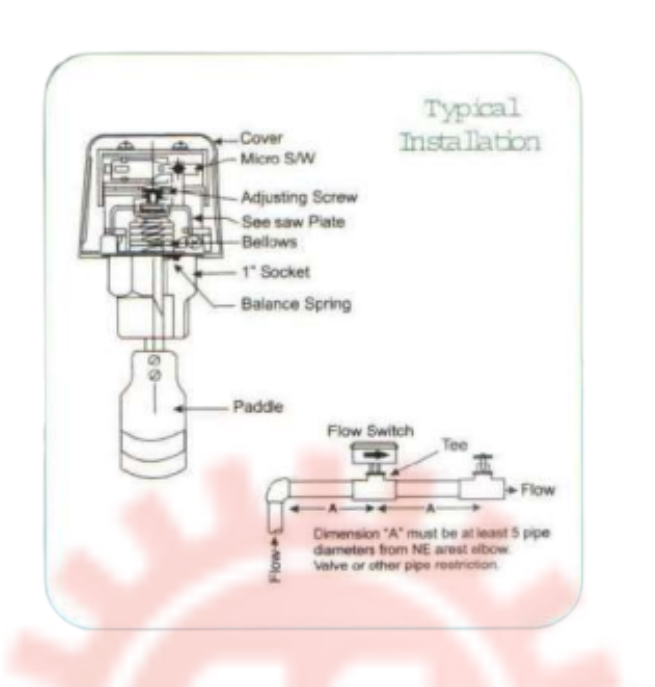

Illustration Included:
Shows internal parts.
Cover, Micro S/W, Adjusting screw, Terminal block, Paddle, etc.
Includes labeled diagram of Flow Switch Installation.
|
