CLOSED TYPE EXPANSION TANK

Closed Expansion Tanks Closed Expansion Tanks

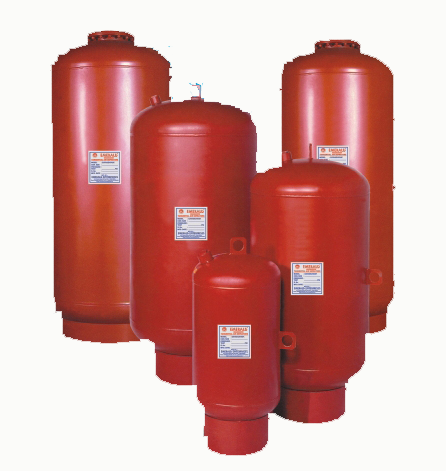

Expansion Tank (Series- EET)

Series EET Expansion Tank (Replaceable bladder type  pressurized)

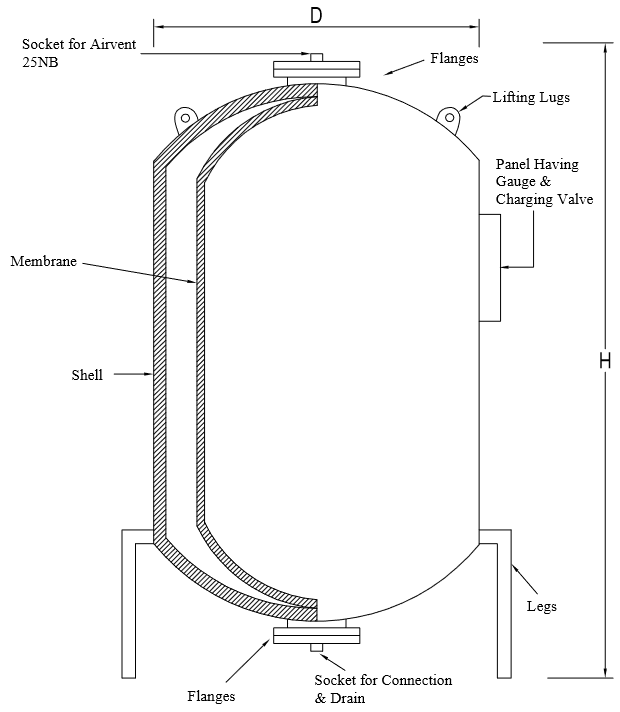

The pressurization system shall include an Emerald, replaceable bladder type expansion tank which will accommodate the expanded water of the system generated within the normal operating temperature range, limiting this pressure increase at those components in the system to the maximum allowable pressure at those components. It shall maintain minimum operating pressure necessary to eliminate all air. The only air in the system shall be the permanent sealed in air cushion contained in the replaceable bladder type tank, Model No. EET. Dimensions shall be as indicated on the drawing.

The expansion tank shall be welded steel, constructed, tested for a working pressure of (125 psig/8.6 bar) (175 psig/12 bar) and air pre charged.

The tank shall be supported by steel legs or a base (integral ring mount) for a vertical installation. Each tank will have a heavy duty replaceable butyl bladder.

Model Type Capacity Liters Height H-mm Diameter D-mm Approx. Weight
in kgs(Empty)
EET 35 35 500 400 9.5
EET 50 50 750 400 13
EET 80 80 800 500 17
EET 100 100 900 500 33
EET 150 150 1050 550 48
EET 200 200 1100 600 55
EET 300 300 1300 700 70
EET 500 500 1650 800 110
EET 750 750 1900 850 170
EET 1000 1000 2200 850 195
EET 1500 1500 2200 1100 235
EET 2000 2000 2600 1100 310
EET 3000 3000 3000 1300 400
EET 5000 5000 3800 1500 600

Benefits:

  • No Maintenance expenses

  • Membrane (Bladder) replaceable.

  • No Energy required

  • It checks constant Water Flow either contracting & expansion of the water in the system.

  • Low installation cost.

  • Controls the Water Hammering and stabilize the water pressure in the system.

  • It reduces pumps cycling & save energy.

  • The tank provides equal pressure at all the points in the plant.

  • It prevents corrosion in the pipe line.

  • No maintenance is required.

Specification | Design May be change without any prior Intimation

Expansion Tank Series (EET) Pressurized

For Closed Hydronics Heating & Chilled Water Systems

The pressurization system shall include an Emerald, replaceable bladder type expansion tank which will accommodate the expanded water of the system generated within the normal operating temperature range, limiting this pressure increase as these components in the system to the maximum allowable pressure at those components.

It shall maintain the system pressure within the maximum allowable limit. Only air in the system shall be the permanent sealing and cushion contained in the replaceable bladder type tank, Model No. EET. Dimensions shall be as indicated on the drawing.

The Expansion Tanks can also be manufactured in Stainless Steel as per Pressure Regulations (JIS / EEC).

Emerald Expansions are constructed in Mild Steel as per IS2062 / Stainless Steel as per SS304. The Expansion Tanks as constructed as per AMSE / IS-2825 pressure standard (Non-fired). Each tank has a working pressure of (125 psig/8.6 bar) and air pre charged.

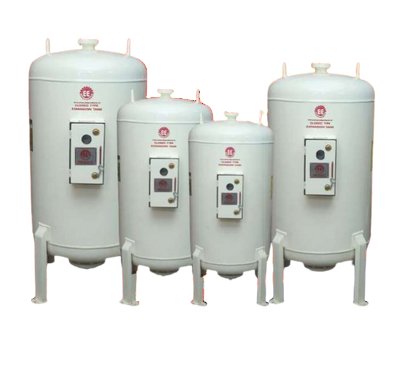

The tank shall be supported by steel legs or a base (integrated mount) for vertical installation. Each tank will have a heavy duty replaceable butyl bladder.

Benefits:

  • No Maintenance expenses

  • Membrane (Bladder) replaceable.

  • No Energy required

  • It checks constant Water Flow either contracting & expansion of the water in the system.

  • Low installation cost.

  • Controls the Water Hammering and stabilize the water pressure in the system.

  • It reduces pumps cycling & saves energy.

  • The tank provides equal pressure at all the points in the plant.

  • It prevents corrosion in the pipe line.

  • No maintenance is required.
