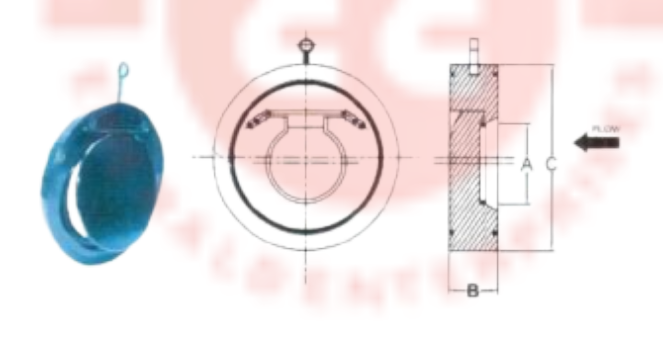

WAFER TYPE SWING CHECK PLATE SERIES EWTSP-001
Check valves model EWTSP-001 is primarily a single plate swing check valve
with a short pattern wafer body. The MS Body is robust construction with good
performance. The low inertia Disc Plate design enables the valve to open or
close with a very low differential pressure. The eccentric disc shaft in
combination with the Disc seat guarantees a positive shutoff at the material
liquid.
The valves are suitable for mounting between mating flanges on the associated
welded pipeline. No Gasket is needed in between mating flanges. O-Ring is
provided on both sides of the check valve to eliminate the leakage. A handle is
also provided on the top for easy installation. Valve is seated at a 15° inclination.
Construction:
| Part |
Material |
| Valve Body |
Mild Steel IS-2062 |
| Water Plate |
Mild Steel IS-2062 |
| Hinge Rod |
Stainless Steel SS-304 |
| Pin |
High Tensile Material |
| O Ring |
Nitrile / Neoprene / |
| Seal Ring |
Nitrile / Neoprene / |
| Fasteners |
Mild Steel IS-2062 |
| Painting |
Epoxy Paint – Black Color |
| Dimensions |
As per Table |
| Std. Reference |
ASME Table |
| Rating |
PN-25 |
| Operating Temp. |
Chilled Water & Hot |
Check Valves

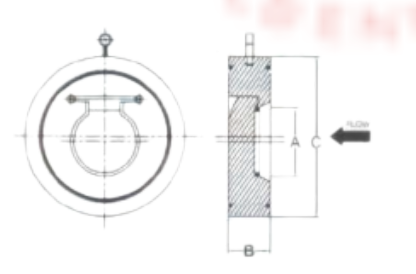

Dimensions:Up to 150NB :
| Valve Size |
A (mm) |
B (mm) |
C (mm) |
| 40 |
14 |
16 |
7.5 |
| 50 |
14 |
17 |
10 |
| 65 |
15 |
19 |
12.5 |
| 80 |
16 |
22 |
13.5 |
| 100 |
18 |
27 |
17.5 |
| 125 |
19 |
30 |
19 |
| 150 |
19 |
32 |
22.5 |

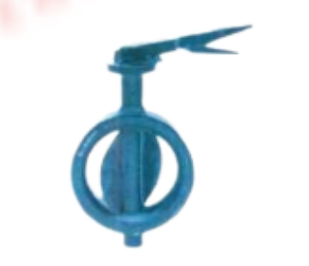

BUTTERFLY VALVE DULY RUBBER LINED SERIES BVRL-003
Emerald valves are designed to meet the demanding requirements of the
general utility valve market with the HVAC segment in particular. BVRL-003 is a
truly & tight valve, which requires minimal maintenance.
The body liner (which also functions as the soft seat) comes in an integrally
molded (bonded) version and offers 100% bi-directional sealing against
vacuum to rated pressures of PN-10. The wafer style body has universal design
to fit between pipe flanges of almost all popular flange standards.
Construction:
| Component |
Material |
| Body |
Cast Iron Gr. IS-260 |
| Disc |
Cast Iron Gr. IS-260 |
| Liner |
Nitrile / Synthetic / Neoprene |
| Shaft |
SS-410 |
| Sleeve |
Nitrile / Synthetic / Neoprene |
| O-Ring |
Mild Steel IS-2062 |
| Pressure Rating |
PN-10 |
| Size Available |
40 NB to 1000 NB |
| Painting |
Black Color Epoxy |
| Seat Leakage |
Tight Shut Off
|
DUAL PLATE SWING CHECK VALVE SERIES DPSC-002
The dual plate check valve is a swing valve uniquely designed for allpurpose
non-return valve (NRV) applications.
The constructional feature makes the valve much smaller in size, lighter in
weight & makes it much more feasible in operation as compared to
conventional swing check valves.
The dual plate swing check valve employs dual spring-loaded plates/discs
hinged on a central hinge pin. It operates on the differential pressure
between fluid flow pressure & spring tension pressure. As the flow
pressure reduces, the plates tend to close with a cushion effect by spring
tension force, thereby restricting the reversal of fluid flow.
| Sr. No. |
Component |
Material |
| 1 |
Body |
Cast Iron, Cast Carbon
Steel |
| 2 |
Disc |
Ductile Iron / Cast Iron /
Stainless Steel |
| 3 |
Spring |
Stainless Steel SS-316 |
| 4 |
Hinge Pin |
Stainless Steel SS-316 |
| 5 |
Stop Pin |
Stainless Steel SS-316 |
| 6 |
Hinge Pin Strainer |
Carbon Steel |
| 7 |
Stop Pin Retainer |
Carbon Steel |
| 8 |
Rubber Seating |
Synthetic / Neoprene /
Silicon |
Full Way Ball Valve (Series: EFWBV-102)
With & Without Strainer.
Screen Perforations.
Standard 0.5 to 2 mm perforated.
Material:
Body: Brass forged.
Size Available: 12NB to 50NB.
Handle: M.S. Chrome Plated.
Ball Valve: Teflon Seal.
Finishing: Brass duly chrome plated.
Size Available: 12mm to 50mm.
Self Cleaning Pot Strainers – Cum – Sediment Separators (Series SSPL-106):
Construction
Material: Mild Steel IS-226.
Top Flange Openable: Filter elements can be replaced without
disconnecting the pipeline
Filter Element: Stainless Steel SS-304, 10mm THK with 3mm
perforation (40 mesh per sq inch).
Magnet: A powerful magnet is provided to attract iron particles.
Flanges: BS-10 flanges are provided at inlet and outlet for servicing
point of view.
Design: View arrangement of the upper lid to put in the desirable
position is provided with the help of bearing arrangements.
Pressure Test: 21 kg/cm².
Ball Valves (For Fan Coil Units)
Specifications:
Body: Brass Forged Body
Sealing: Teflon
Stem: Stainless Steel SS-304 (2 mm
THK)
Test Pressure: 21 kg/cm²
Ball: Brass duly chrome plated
Construction:
Bronze forged body with chrome-plated brass ball, BRASS STEM duly
chrome plated, Teflon seals and gaskets.
Teflon seals cap gasket retained in body groove to prevent
accidental loss with synthetic Rubber 'O' ring stem seal.
Benefits:

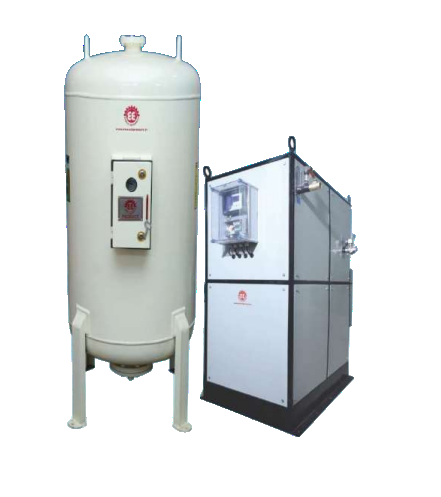

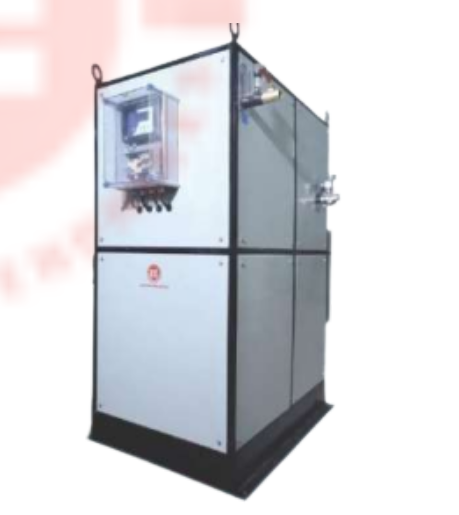

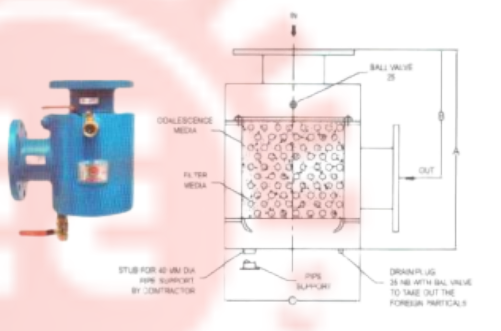

Uses of coalescence media instead of stainless steel filter/bucket.
Removes solid particles that need to be flushed out before they can cause damage to pumps.
Maintenance-free.
No replacement/cleaning of filters to get clogged.
Increases life of pumps and other components too.
Quiet Operation.
Also saves major problems such as pump failure, corrosion, and energy loss.
Flow remains constant without any high-pressure drop.

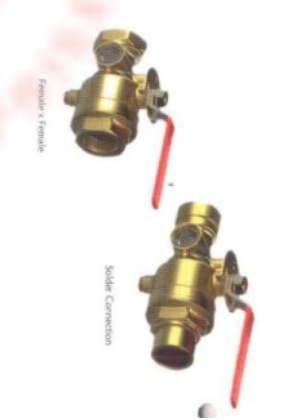

TEST & DRAIN VALVE
(For Fire, Fighting & HVAC Industries).
Connection: Female × Female or Solder Connection.
It combines the function of testing and draining the system.
Rated Pressure: 100 to 300 PSI.
Connection Available:
1" FPT (BSP) × 1" FPT (BSP).
Construction:
| Component |
Material |
| Body |
Brass (Forged) |
| Glass |
Toughened (Tempered) |
| Handle |
Stainless Steel SS-304 |
| Hardwares |
Brass |
| Ball Valve |
Brass duly chrome plated |
| Seating |
Teflon |
|
