Simplex -Type Strainers

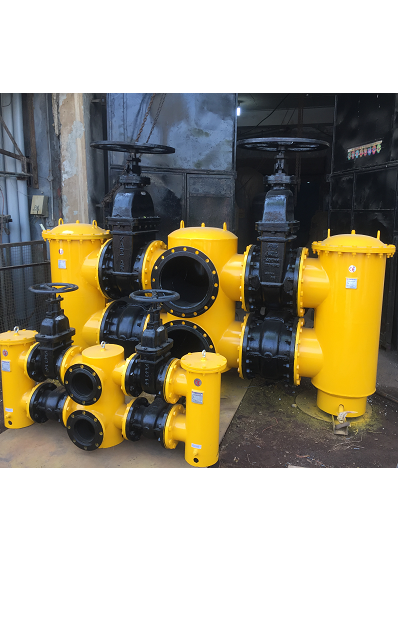

Pot Strainers (Series-EPSM-104)

Construction:
Cast Iron CI-260 / M.S. IS:2062.
Top Flange Openable Filter Element (can be replaced without disconnecting pipe line).
Filter Element: Stainless Steel - SS-304 / Brass / Bronze.
A permanent magnet is also provided on demand.
Pressurating: 14 kg/cm² to 21 kg/cm².
Table E Flanges are provided at INLET & OUTLET connections.

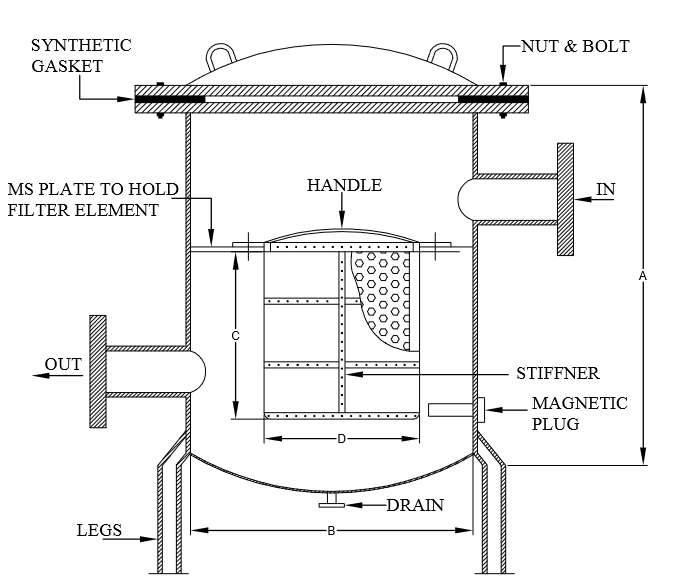

CON.SIZE A B C D 50&65 250 100 80 50 80 300 150 100 80 100 350 150 125 100 125 400 200 150 125 150 470 200 175 150 200 575 250 250 200 250 700 300 300 250 300 800 380 350 300 350 890 400 390 250 400 1050 500 450 400 450 1150 560 500 450 500 1300 650 550 500

Features:

1. Large barked size hold large number of solids.

2. Filtration area is more.

3. Pressure drop is also less as compared to Y strainer.

Y-Type Strainers (Series-EYSM-105)

Construction:
Cast Iron CI-260 / M.S. IS:2062.
Top Flange Openable, Filter Element can be replaced without Disconnecting Pipe Line.
Filter Element: Stainless Steel - SS-304 / Brass / Bronze.
Permanent magnet available on demand.
Pressurating: 14 kg/cm² to 21 kg/cm².
Table E Flanges are provided at INLET & OUTLET connections.

Application:

Used to protect control valves, water meters, pumps, steam & measuring equipment & HVAC, etc. Pressure rating: 21 kg/cm²

Material:

Series - SSPL-107

Y-Strainers are fabricated out of M.S. 'C' Class pipe (two sizes higher than that of strainers pipe size).

Magnetic Plug: Permanent type provided to attract iron particles.

Filter: Stainless Steel SS-304 (non-magnetic), 0.6 mm thickness, 3 mm perforation holes.

These Y-Strainers are larger in size than Simplex Strainers (Series EYM-105) to minimize pressure drop and offer more filtration area than the standard design.

Pressure Rating: 150 PSI to 300 PSI (10 kg/cm² to 21 kg/cm²).

Filter Element:

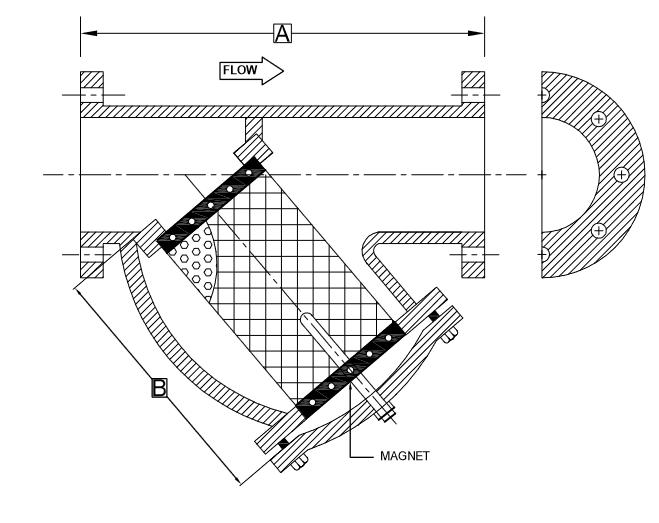

Norminal Size 25 32 40 50 65 80 100 125 150 200 250 300 A 132 160 160 210 250 260 305 358 394 460 550 600 B 95 120 120 160 180 185 220 260 275 320 400 450

Y-Type Bronze Strainers (Series-EBYS-103)

Self Cleaning Pot Strainers-Cum-Sediment Seprators(Series- SSPL-106)

: MILD STEEL IS-226, Top Flange openable, Filter elements can be replaced without Disconnecting Pipe Line, Filter element of stainless steel SS -304, 1mm THK having 3 mm perforation, 40 mesh per sqinch. A powerfull Magnet is provided to attract Iron particals. BS-10 Flanges are provided at Inlet & Outlet connection for Servicing point of view arrangement of the upper lid & to put on the desirable position is provided with the help of Bearing Arrangements.

Pressure Test 21 kg/cm2. The pot strainers cum sediment separators are fabricated.

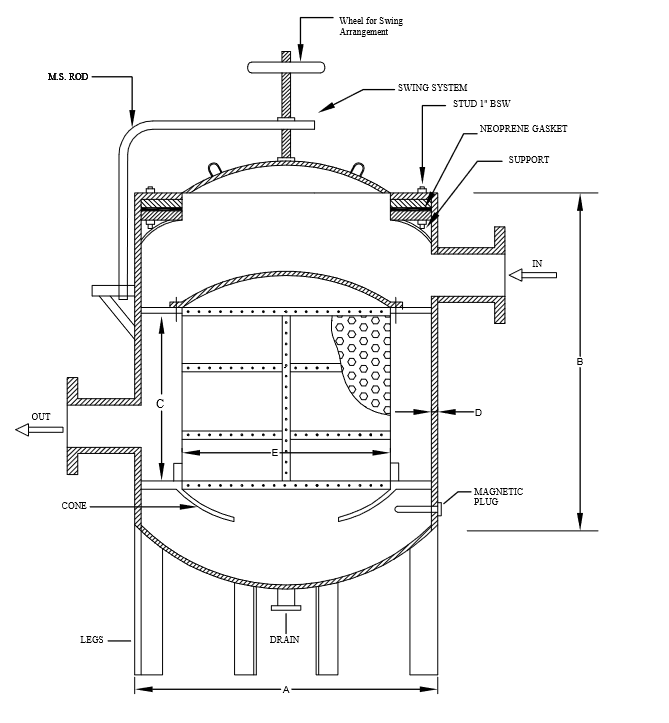

CON.SIZE Pot Dia  A Pot HT.  B Basket Dia  E Basket HT. C Shell THK D 50 & 65 300 400 200 240 6 80 350 450 250 250 6 100 460 500 300 280 6 125 500 600 330 340 8 150 540 700 360 390 8 200 610 815 400 470 8 250 800 955 550 510 8 300 10000 1105 750 580 8 350 1190 1300 895 678 12 400 1350 1500 1020 785 12 450 1518 1700 1060 890 12 500 1690 1800 1100 900 12 600 1800 1900 1200 1000 12 650 2000 2000 1300 1100 12 700 2050 2050 1350 1100 12

Y- Strainers (Series-SSPL-107)

Specification of Y Strainer for Air Handling Unit (SERIES - SSPL-107)

"Y" Strainer is fabricated out of MS 'C' class pipe two sizes higher than that of strainer pipe size. Flanges as per B.S. 10 are provided at inlet and outlet connections. The body is pressure tested at 16 BAR and hot dip galvanized. Permanent magnet is provided in the body of the Y Strainer to arrest MS particles. Filter element is non-magnetic 20 gauge SS sheet with 3mm perforation. Strainers are provided at inlet and outlet of Air Handling Unit.

Strainer Cum Dust Free Water Through a Single Unit.

Solution

Series EAR-107 removes iron particles & dust from the system using a combined solution.

Application:

EAR series strainers have five media filter elements of varying mesh sizes for better water filtration before commissioning.

Recommended process:

Start with low mesh filters.

Gradually shift to higher mesh for cleaner water.

Final filter (03 mm perforation / 40 mesh) is recommended for long-term system operation.

Filters are repeatable after cleaning and reusing.

Micron Options Available:

200 Micron

100 Micron

130 Micron

650 Micron

Main Body:

Material: Heavy Duty "C" Class Pipe Grade IS-2062.

Painted outside & inside with epoxy resin, single-size duly epoxy coated.

Filter Media:

Stainless Steel Grade SS-304.

Five interchangeable filter media types provided.

Magnet:

Powerful magnetic plug attracts iron particles.

Bonnet Gasket.

Material: C.A.F.

Groove Type Strainers (Victaulic).

Series EEGS - 111.

Overview:

Designed with grooved ends - no welding required.

Uses a rigid coupling for inlet & outlet joints.

Tight joint with help of nuts and bolts - with pressure up to 2 kg/cm².

Designed as per international standards.

Body:

Material: Mild Steel IS-2062.

Filter:

Material: Stainless Steel SS-304.

3 mm perforation screen.

Paint:

Epoxy coating (Inside & Outside).

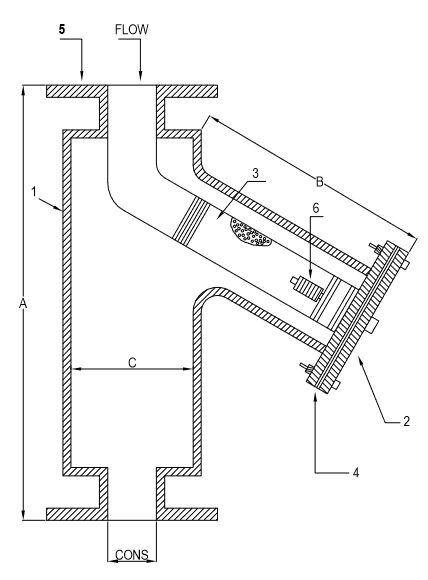

1. BODY M.S -2062 "C" Class Pipe (Hot Dip Galvanised) 2. Bonnet MILD STEEL 3. Body/Bonnetbolts IS-2062 4. Basket Stanless Steel With 3 MM Perforation & 0.6mm Thick 5. Bonnet Gasket C.A.F. 6. Flanges Top Flanges As Per Tables BS10 7. Magnetic Plug To Attract Iron Particles CON. 25-to 40 50 65 80 100 125 150 200 250 300 350 400 A 240 275 350 400 450 500 600 650 700 825 900 1000 B 150 170 250 250 300 350 400 475 525 650 725 825 C 50 100 100 125 150 200 250 300 350 400 450 500

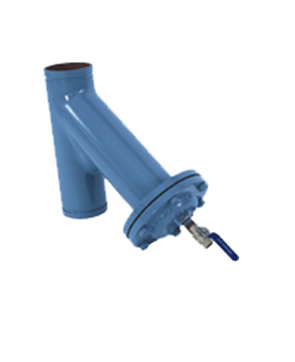

Groove Type Strainers (Victaulic Type)

Series EEGS-111 In this series welding of flanges at both ends connections is not required. A rigid coupling (Having a pair of coupling) is installed at a inlet and outlet connections with help of high tensile nuts and bolts it stands pressure upto 21kg/cm2. Groove ends of strainers are as per International Design.   Body: Mild Steel IS-2062 Filter: Stainless Steel SS-304 Having 3mm Perforation Screen is provided. Paint: Epoxy (Inside & Out Side) Design: As per our series-SSPL-107 Pressure: 10 to 21 Bar

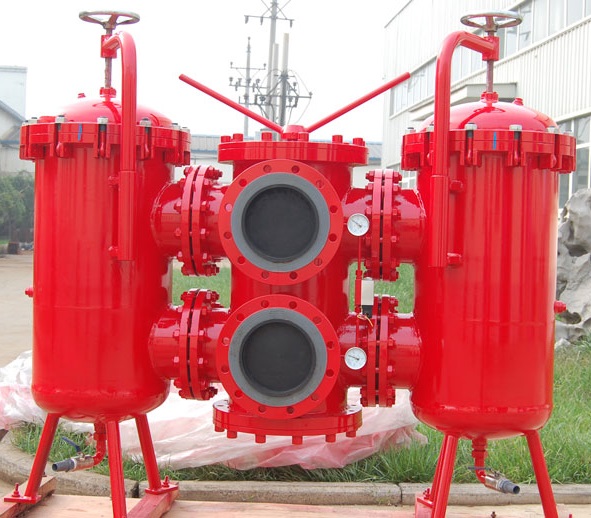

Duplex-Type Strainers (Series-EDPS-108)

The range of Duplex strainers are available from 50 NB to 300NB can be used for the fine filtering of almost. For fluids and gases, its features are very high performance, low way, compact and easy cleaning. Construction: The duplex strainer consists of two identicle strainers which can be operated alternatively on in parallel by means of a change over device. The duplex strainer prevents shut down of a plant. All duplex strainer are constructed from MS IS 2062. The change over device an interaly new design. The design is totally indigeneros & developed first time by EMERALD in INDIA. Pressure Rating: 0-14 kg/cm2 Air relief Devices: Brass/Bronze Filter Element: Stainless steel Grade SS-304 with 3mm perforation having 40 mesh per sq inch of 0.6mm thick, 1mm wooven wire material of SS can be also provided for fine filteration. Wooven wire perforation 0.8 to 1mm Magnetic Plug: Highly powered magnet is provided at the bottom to attract iron particles. Painting: All duplex strainers are lined with epoxy coating to avoid corration.
