Excess air in a system causes noise & oxidation which in turn leads to formation of dirt.

A build up of dirt in the system will lead to increased pressure drops, blockages & premature failing of components.

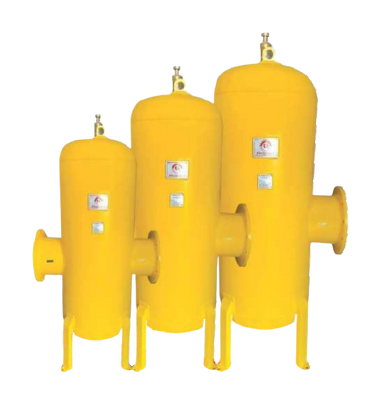

Emerald microbubble air & dirt separator removes circulating air, microbubbles & dirt effectively in closed loop with coalescence media which is present inside the separator.

Working Principle

When water comes in contact with coalescence media, the straight flow of water is deflected in m any directions.

Micro bubbles in the water attach to the coalescence media, growing large enough to get separated.

Advantages

Removes micro bubbles as small as 18 microns.

Removes dissolved air.

Removes air from places where an air vent cannot be installed.

Only 2 psi pressure drop at optimal flow rate.

Removes impurities heavier than water.

SPECIFICATIONS OF MICROBUBBLE AIR/DIRT SEPARATOR

The shell shall be constructed out of Mild Steel as per IS 2062 with coalescence media inside. It shall work on the principle of coalescence. The water velocity the shall not exceed 1.5m/sec. The inlet and outlet connections shall be flanged ends as per ANSI 16.5+150. It shall be provided with a high capacity auto air vent at the to and a drain valve at the bottom. Matching flanges, high tensile bolts & nuts and gasket shall be also provided by the manufacturer.
